When you pick an n type connector for RF, you must look at some important things. These are operating frequency, impedance, power handling, and environmental factors. If you match the connector to your system, you stop signal loss and equipment problems. The table below shows what engineers think matters most:

Key Takeaways

• Make sure your N type connector matches your RF system. Most systems use 50Ω to stop signal loss.

• Pick connectors by their frequency range. Standard N type connectors work up to 11 GHz. Precision types can go up to 18 GHz.

• Choose connectors made from strong materials like brass or nickel-plated brass. This helps them last longer and keeps them from rusting.

• Think about weatherproofing if you use them outside. Find connectors with high IP ratings to keep out water and dust.

• Use a checklist when picking connectors. This helps you avoid mistakes and makes sure you get the right connector for your needs.

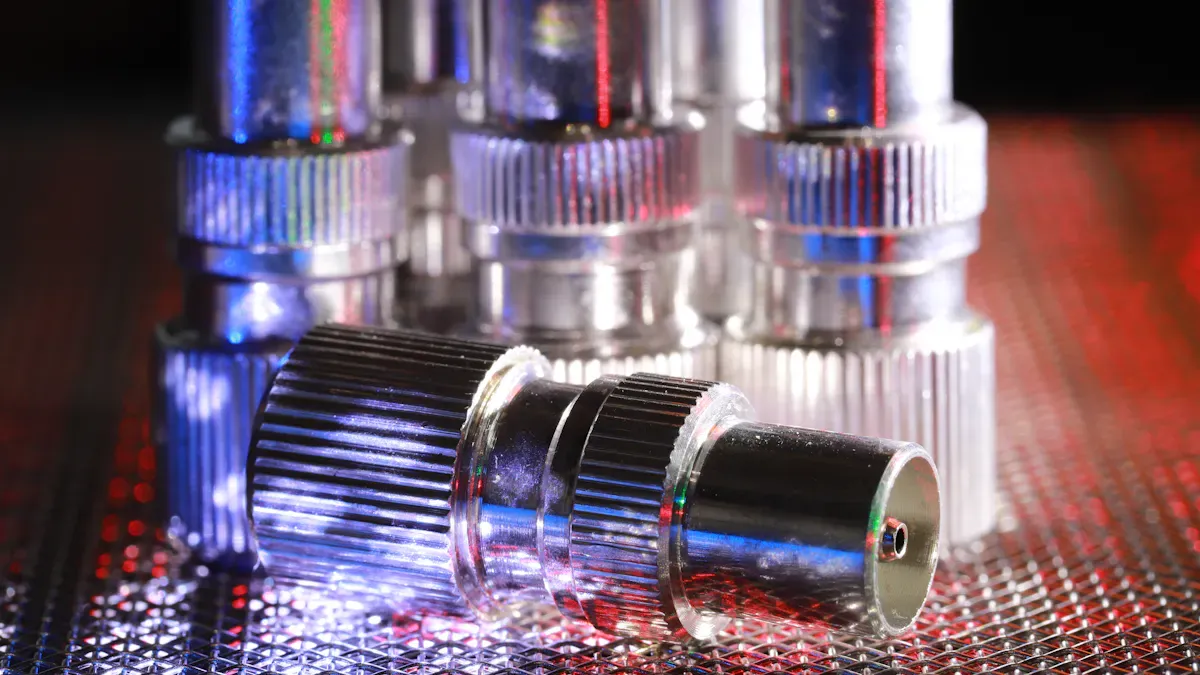

N type connector basics

What is an n type connector

There are many connectors in RF systems. The n type connector is special because it is strong and works well. It has threads, so you twist it on tightly. This makes sure it stays in place. There is a gasket inside. The gasket keeps out dust and water. These things help the n type connector work in hard places.

N type connectors can work up to 11 GHz without problems. Some special ones can go up to 18 GHz. You can use them in radar and communication tools. The tough design helps it last a long time. It can also handle more power than many other connectors.

Here is a table that shows how the n type connector and the SMA connector are different:

Common uses in RF systems

N type connectors are used in lots of RF systems. They help keep signals strong and clear. They do not lose much signal as it moves. This is good for high-frequency jobs where the signal must stay steady.

Many businesses use this connector. You see them in telecommunications, the military, airplanes, and TV stations. These jobs need connectors that work with high power. They also need to work in all kinds of weather. Picking an n type connector helps your RF system work well and stay strong.

Key factors for n type rf connectors

Impedance: 50Ω vs 75Ω

You need to make sure the impedance of your n type rf connectors matches your system. Impedance means how much the connector resists the signal. Most RF systems use 50Ω. Cable TV systems usually use 75Ω. If the impedance does not match, the signal can get weak. You might see signal loss or reflections. Always look at the impedance before picking your rf connector.

• Matching impedance keeps your signal strong.

• If impedance does not match, you lose signal and get reflections.

• Keeping the same impedance helps your signal stay clear.

Frequency range and power

You should check if your n type rf connectors work with your frequency range. Standard n type connectors go up to 11 GHz. Precision types can reach 18 GHz. High-frequency jobs need connectors that can handle these numbers. You also need to check power handling. If the connector cannot handle the power, it might break.

• Standard connectors are good for most RF jobs.

• Precision connectors are better for high-frequency jobs.

Build quality and materials

The materials in n type rf connectors change how well they work and how long they last. Good materials stop rust and keep the connection tight. Brass, copper alloys, and nickel-plated brass are used a lot. Gold coating makes contact better. Stainless steel and aluminum make the connector strong. Pick connectors with tough materials if you want them to last.

Tip: Pick n type rf connectors with good materials so you do not get problems like rust or bad contact.

Weatherproofing and durability

Outdoor systems need n type rf connectors that keep out water, dust, and shaking. IP ratings show how well a connector protects against these things. IP67 and IP68 are best for outside use. Changes in temperature and humidity can make connectors stop working. You need to check if the connector can handle your weather. The connector should also be strong. It should not break from shaking or hot and cold changes.

• IP rating shows how waterproof the connector is.

• Humidity and temperature changes can cause rust.

• Strong connectors help your system work in hard places.

Choosing the right rf connector

Connector gender and orientation

You need to know if your connector is male or female. Male connectors have a pin in the middle. They also have threads on the outside. Female connectors have a hole in the middle. Their threads are on the inside. You screw the male connector into the female one. This makes the connection strong and safe.

You should check how your connector is shaped. Some connectors point straight out. Others bend at a right angle. The shape helps you fit connectors in small spaces. It also helps you direct cables where you want. Picking the right connector makes installation easier. It keeps your system neat and tidy.

Straight vs right angle connectors

You can choose straight or right angle connectors. Straight connectors work best when you have lots of space. They let the cable go in a straight line. Right angle connectors are good for tight spaces. They help the cable turn quickly. This stops the cable from bending too much. It keeps the cable safe and the signal strong.

The N Type Male Connector from Danyang Teruilai Electronics Co., Ltd is a right angle connector. It fits in small spaces and keeps the connection secure. The right angle shape helps you install it where a straight connector cannot fit. You get a strong connection and save space.

Tip: Use right angle connectors in tight spots or to avoid sharp bends.

Mechanical and environmental fit

You must make sure your connector works in your environment. If your system shakes, you need a connector that stays tight. N type rf connectors have strong threads and locking parts. They do not come loose easily. This keeps your signal steady even if the equipment moves.

In tough places, you need connectors that handle heat, cold, moisture, and chemicals. Outdoor RF systems face rain, sun, and dust. You should pick connectors with weatherproofing and strong materials. Look at the table below to see what matters most for outdoor use:

The Danyang Teruilai Electronics Co., Ltd N Type Male Connector works well in tough places. It has 50Ω impedance and a frequency range from DC to 6GHz. The body is made of strong brass with nickel plating. The connector uses Teflon insulators and gold-plated contacts. It works in temperatures from -40℃ to 70℃. You get high insulation resistance and low contact resistance. The connector handles shaking and stays reliable.

• Wide frequency range

• Low insertion loss

• High power capacity

• Strong build for vibration

You match connector features to your RF job by checking the specs. If you need a connector for outside, look for weatherproofing and strong materials. If your system needs high power, check the power rating. If you want steady signals, match the impedance. N type rf connectors help keep signals clear and strong. You get less signal loss and better performance.

Note: Always check the specs before you pick the right rf connector for your system.

Selection checklist and support

Step-by-step connector selection guide

Here are easy steps to help you pick the right connector for your RF project:

1. Choose the connector type. First, decide if you need a male or female connector. Check which one fits your cable or device.

2. Check the impedance. Most wireless systems use 50 Ohm. Broadcasting systems often use 75 Ohm. Make sure the impedance matches your system.

3. Review the frequency range. See if the connector works for your signal frequency. Some n type rf connectors can go up to 18 GHz.

4. Look at material and build quality. Pick connectors made from strong materials like brass or nickel-plated brass. Good materials help the connector last longer.

5. Think about weatherproofing. For outdoor use, choose connectors with IP-rated sealing. This keeps water and dust out.

6. Pick the right orientation. Use straight connectors if you have lots of space. Use right-angle connectors in small or tight spots.

Tip: Always follow the installation steps. Prepare wires the right way and insert contacts with the right amount of force. Keep the connector clean when you put it together.

Here is a table that shows common mistakes and how to avoid them:

When to consult datasheets or experts

You should always look at datasheets before you buy n type rf connectors. Datasheets give you important facts about the connector. Look for these main points:

If you are not sure, ask an expert or contact the company that makes the connector. Experts can help you find the right connector for your system. They can also answer questions about special needs or tough places.

Note: Careful planning and asking for advice can help you avoid problems and keep your RF system working well.

When you pick an N type connector for RF, you need to think about a few main things. These are impedance, frequency, power, and how well it is made. Making a checklist can help you not make mistakes. It also helps you pick the right connector every time:

You should always look at datasheets and talk to technical support if you need help. This way, you get advice from people who know a lot. It helps you choose the best connector for your job. Good brands like Danyang Teruilai Electronics Co., Ltd test their connectors. They give you help and can make special connectors if you need them. This makes you feel sure your RF work will go well.

FAQ

What is the difference between a 50Ω and 75Ω N type connector?

Most RF systems use 50Ω connectors. Cable TV and video use 75Ω connectors. Matching impedance keeps your signal strong and clear.

Can I use N type connectors outdoors?

Yes, you can use N type connectors outside. Pick ones with weatherproofing and strong materials. IP-rated connectors keep out water and dust.

How do I choose between straight and right angle connectors?

Pick straight connectors if you have enough space. Use right angle connectors in tight places. Right angle connectors stop cables from bending too much.

What materials make N type connectors last longer?

Connectors made with brass, nickel plating, and Teflon insulators last longer. These materials stop rust and work well in tough places.

Do I need to check datasheets before buying?

You should always check datasheets before you buy. Datasheets show frequency range, impedance, and power ratings. This helps you pick the right connector for your system.
