You crimp an SMA female connector with the right tools. You must follow each step carefully. If you make mistakes, the connection can fail. Bad connections can cause poor contact or signal problems. Look at the table below for common problems:

Many industries use SMA female connectors. You see them in test equipment and aerospace. They are also in telecommunications and medical devices. Cars use them too. The Teruilai SMA Female Connector works well in tough jobs. It is strong and lasts a long time.

Key Takeaways

• Always use the right tools for crimping SMA connectors. You need coax strippers, hex crimp tools, positioner jigs, and pull gauges.

• Pick the SMA female connector that fits your cable type. This helps the signal stay strong and stops signal loss.

• Measure and cut your cable with care. Keep the cable short to lower signal loss, especially when using high frequencies.

• Check the cable and connector before you crimp them. Look for any damage and make sure the sizes match to stop problems later.

• Test your crimped connection to see if it works well. Use a multimeter to check for continuity and make sure insertion loss is low for best results.

Tools for Crimp SMA Connectors

Required Tools and Materials

You need the right tools to crimp sma connectors and get a strong, reliable connection. Each tool has a special job. Here are the main tools you should have:

• Coax strippers: These help you remove the outer jacket of the cable. You can set them for about 2.5 mm when working with RG316 cable.

• Hex crimp tools: These tools let you crimp the connector onto the cable. They come with dies for different cable sizes, from 1.72 mm to 5.40 mm. For SMA connectors, you often use a 0.128” hex die.

• Positioner jigs: These hold the pin steady while you crimp or solder, so you get a precise fit.

• Pull gauge: This tool checks how strong your crimp is. It measures the pull strength, usually from 0 to 100 newtons.

Tip: Always use clean, sharp tools. Dull blades or worn-out crimpers can damage the cable or connector.

Choosing the Right SMA Female Connector

You want to pick a connector that matches your cable and meets your project needs. The Teruilai SMA Female Connector stands out for high-frequency and durable jobs. It works up to 18GHz and even higher with some models. This connector uses a 50Ω system and meets the IEC60169-15 standard, which is important for RF and microwave work. The body is made from strong brass with nickel plating, and the pin uses gold plating for better signal flow.

Matching the connector type to the cable type is very important. When you use the right pair, you keep your signal strong and steady. This helps prevent signal loss and stops unwanted reflections. Good matches also help your system handle high-speed signals without problems. Always check the cable size and type before you choose your connector.

Prepare SMA Female Connector and Cable

Measure and Cut Cable

Start by choosing the right cable for your project. You might use a rg58 cable for many RF jobs, or a rg316 coaxial cable for smaller, flexible needs. Always match the cable type to your application. Some cables are flexible, while others are semi-flexible or rigid. Think about what your project needs most—low loss for power, or flexibility for easy routing.

When you measure, keep the cable as short as possible. Shorter cables help reduce signal loss. Standard lengths include 10 cm, 20 cm, and 1 meter, but you can cut custom lengths if needed. For high-frequency work, like 5G or GPS, try to keep the cable under 30 cm. Use a sharp cutter to make a clean, straight cut. This helps you get a good connection later.

Tip: Always double-check your measurement before cutting. Mistakes can waste cable and hurt performance.

Strip Cable Properly

Stripping the cable is a key step. You want to remove just enough of the outer jacket, shield, and dielectric to fit the connector. Use a coax stripper for best results. Set the tool for your cable type, such as rg58 cable or rg316 coaxial cable. Precision matters here. If you cut too deep, you might damage the center conductor or the dielectric. If you do not strip enough, the connector will not fit right.

For very small cables, like micro-coax, laser stripping works well. This method avoids touching the inner layers, so you do not risk damage. Always check that the stripped cable looks clean, with no nicks or bent wires.

Inspect Cable and Connector

Before you attach the connector, inspect both the cable and the SMA female connector. Look for any damage, like crushed spots or bent pins. Make sure the cable matches the connector size and type. The Teruilai SMA Female Connector works best with high-quality cables and careful prep. Check that the cable's impedance matches the connector, usually 50 ohms for RF work.

A quick inspection now can save you trouble later. If you see any problems, cut a new piece of cable and start again. Good prep leads to a strong, reliable connection.

Attach and Crimp SMA Female Connector

Slide on Crimp Sleeve

You start by sliding the crimp sleeve, also called the ferrule, onto the cable. The sleeve must go on before you attach the connector body. If you forget this step, you will need to start over. Make sure the sleeve sits loosely on the cable. You will use it later to secure the connector.

Tip: Always check that the crimp sleeve matches the cable diameter. A tight fit helps you get a strong crimp.

Position Cable Braid

Next, you prepare the cable braid. After stripping the cable, flare out the braid gently. Spread the braid evenly around the dielectric. This step helps shield the signal and keeps the connection stable. If you see stray wires, trim them with small scissors. The braid must not touch the center conductor. You want a neat, even braid for the best results.

Insert Center Contact

Now, you insert the center contact. Take the center pin and slide it onto the exposed conductor of the cable. Some SMA female connector designs require you to solder the pin. If you need to solder, heat the pin and let the solder flow into the joint. Make sure the pin sits straight and does not wobble. If your connector uses a crimp instead of solder, use the crimp tool with a 0.128” hex die to secure the pin. The pin must be centered and tight.

Note: A clean cut on the cable conductor prevents micro-cracks in the insulation. This keeps your signal strong.

Crimp the Connector

You finish by crimping the connector. Slide the connector body over the center pin and braid. Make sure the pin fits into the body and the braid sits under the crimp sleeve. Pull the crimp sleeve over the braid and connector body. Use the crimp tool with the correct hex die size, usually 0.128”, to crimp the sleeve. Squeeze the tool until you hear a click or feel resistance. The crimp must be tight and uniform.

Check your work. The braid should not be loose. The pin must be centered. Trim any excess braid sticking out from the crimp sleeve. You can test the connection with a multimeter. Make sure there is no short between the pin and the shell.

Alert: Avoid common mistakes. Do not over-crimp or under-crimp. Over-crimping can crush the cable and damage the connector. Under-crimping can cause a loose connection. Always use the right die size and tool.

You have now completed crimping sma connectors. The SMA female connector should feel secure and ready for testing.

Test and Troubleshoot Crimped Connection

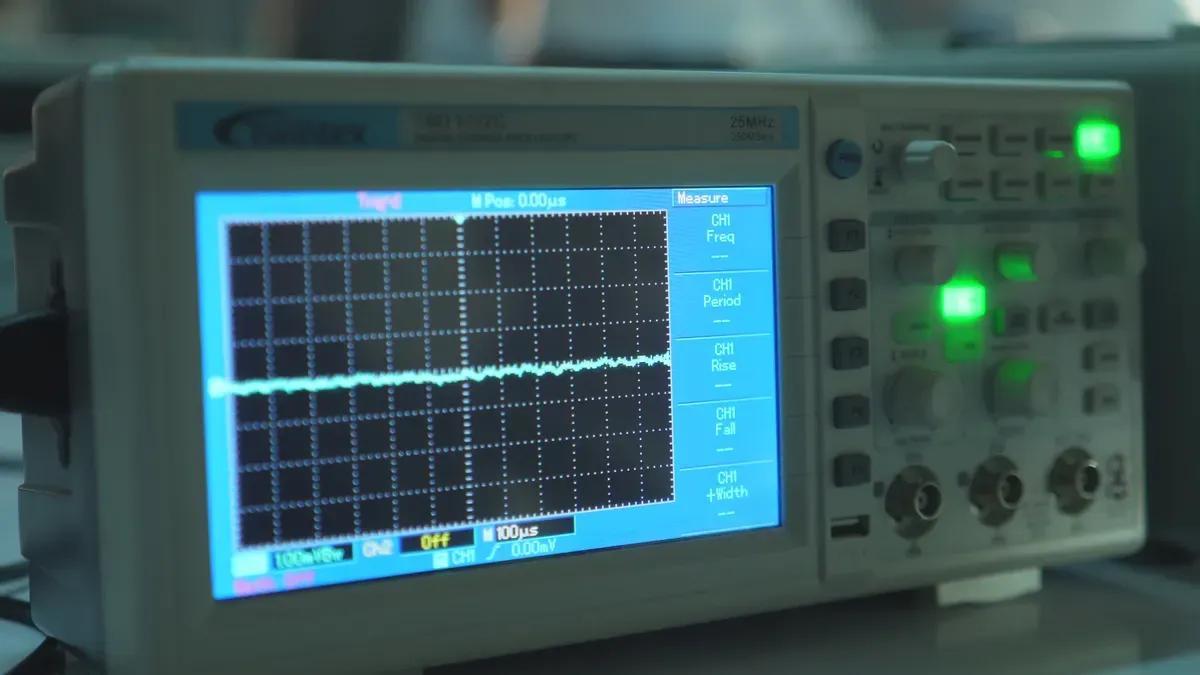

Inspect Crimp Quality

You should always check your crimped SMA female connector before using it. Look closely at the crimp area. The sleeve must sit tight with no gaps. The braid should not stick out. The center pin must stay straight and not wobble. If you see bent pins or loose parts, you need to fix them. A good crimp looks even and smooth. Use a magnifying glass if you want a better view.

Tip: If you see any damage or rust, clean the connector with isopropyl alcohol or a brass brush. Replace the connector if you find broken pins.

Test Continuity and Signal

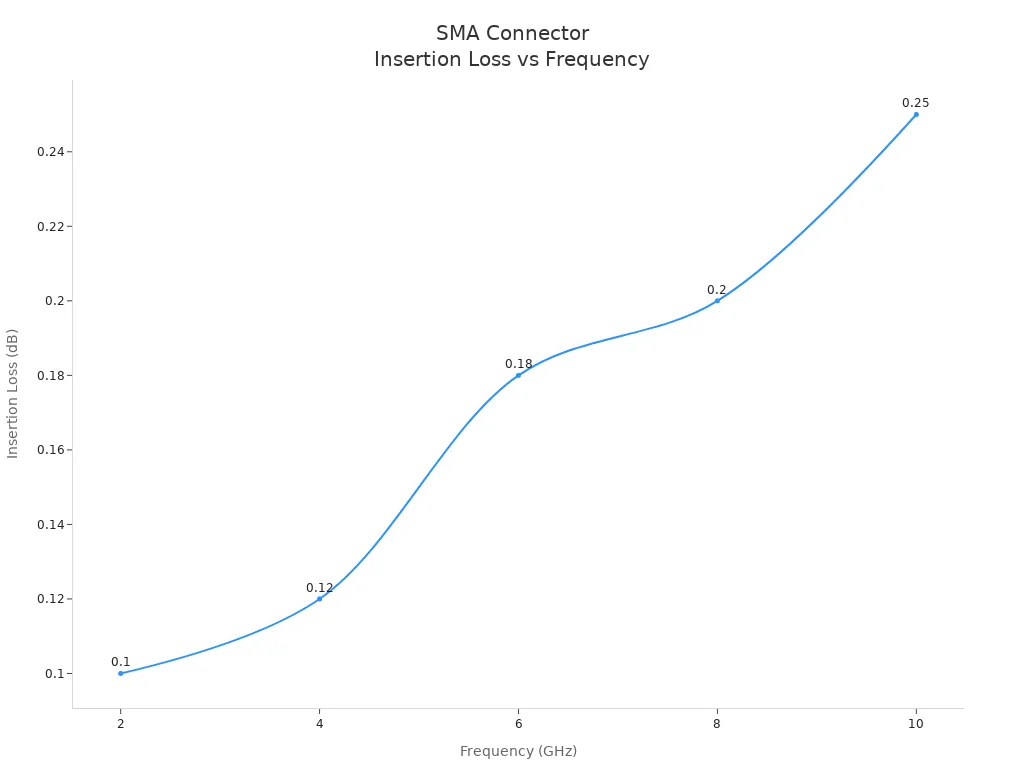

Testing your connection helps you find problems early. Use a multimeter to check for continuity. Place one probe on the center pin and the other on the shell. You should not see a short circuit. If you do, the braid may touch the center conductor. Test the signal with a network analyzer if you have one. Measure the insertion loss at different frequencies. A properly crimped SMA female connector should show very low loss.

If you use an rg58 cable, you should see similar results. Low insertion loss means your connection works well.

Fix Common Issues

Sometimes, you may find high resistance or weak signals. Here are steps you can take:

• Check the connector and cable for visible damage.

• Clean all parts with isopropyl alcohol or a brass brush.

• Use WD40 for tough dirt, but unplug everything first.

• Replace the connector if you see rust or broken pins.

• Watch for moisture or extreme temperatures. These can cause problems.

You may also face failures from environmental factors, mechanical damage, or aging. If you see open circuits, cut out the damaged section and re-crimp. For short circuits, remove the bad part and splice in a new piece. If insulation breaks down, repair or replace the rg58 cable. Always check for proper crimping and replace faulty connectors.

Alert: High humidity and temperature changes can affect your connection. Moisture can lower insulation resistance. Extreme heat or cold can change the shape of the connector and cause failure.

You can keep your SMA female connector working well by following these steps. Careful inspection and testing help you avoid most problems.

You can make a strong crimp if you follow these steps. First, solder the inner core. Next, thread the tubing onto the cable. Then, connect the pin to the wire. After that, secure the shield in place. Press the cold compression tube down. Use crimping pliers to finish the job. Good connectors like Teruilai work well and last long. Always check your work with strength and continuity tests. Practice helps you get better and feel sure about your skills. The sma female connector will work well if you use the right tools and take your time.

FAQ

How do you know if your crimp is strong enough?

You can check the crimp by gently pulling on the connector. It should not move. Use a pull gauge for best results. A strong crimp keeps the connector secure and helps your signal stay clear.

Can you reuse an SMA female connector after crimping?

You should not reuse a crimped SMA female connector. Crimping changes the shape of the metal. Reusing it can cause weak connections or signal loss. Always use a new connector for best results.

What cable types work with Teruilai SMA female connectors?

You can use Teruilai SMA female connectors with common RF cables like RG316, RG58, and similar 50Ω coaxial cables. Always match the connector size to your cable for a proper fit.

Why does my SMA connector have high signal loss?

High signal loss can happen if you have a poor crimp, damaged cable, or mismatched connector. Check your work for bent pins, loose braid, or wrong cable type. Fixing these problems can improve your signal.
