Many industries use bnc rf connectors with RG316 cable for important connections. The quick-connect bayonet system helps people set up and fix things fast. Bnc connectors keep signals strong in tough places. Strong signals are important for delicate equipment. Strong signals are needed in telecommunications, medical, and industrial jobs. Strong signals help stop signal loss when used many times. Strong signals stay the same, even in very hot or cold weather.

Key Takeaways

• BNC RF connectors with RG316 cable give strong signals. They work well in hard places. This is important for telecommunications, medical, and industrial jobs.

• The bayonet coupling mechanism lets you connect fast. You do not need tools to connect. It is good for setups that change often.

• RG316 cable bends easily. It does not get damaged by heat, chemicals, or water. This makes it good for outdoor and factory use.

• BNC RF connectors and RG316 cable fit together well. They give steady performance. They work with most RF systems.

• These connectors are used in many industries. They are used in telecommunications, broadcasting, medical equipment, and aerospace. People like them because they last long and are easy to use.

BNC RF Connectors: Key Features

Bayonet Coupling Mechanism

The bayonet coupling makes rf connectors special in many jobs. This system uses a push and twist move. The male connector has two bayonet lugs. These lugs fit into slots on the female connector. A quick turn locks the connectors together. This design stops vibration from breaking the connection. It also keeps the connectors from coming apart by accident. Technicians like this system because it is fast and easy. They do not need tools to connect or disconnect. The bayonet coupling is great for jobs that need lots of changes.

Tip: The twist-lock system keeps the signal strong. It makes sure the connection stays safe and steady every time.

• Connect and disconnect quickly and easily

• No tools needed to put on or take off

• Stops people from tightening too much

• Keeps the signal strong even with lots of use

Electrical Performance

Rf connectors give strong electrical performance. They work up to 6 GHz with RG316 cable. This wide range keeps the signal strong in high-frequency jobs. The connectors have an impedance of 50 ohms. This matches most rf systems. Matching is important to stop signal loss and reflections. The connectors can handle up to 1500V. This protects equipment that is sensitive. The contact resistance is very low, as little as 3 milliohms. This helps the signal move well. These features make rf connectors a good choice for tough jobs.

• Frequency range: up to 6 GHz

• Impedance: 50 ohms (common for rf jobs)

• Dielectric voltage: up to 1500V

• Low contact resistance keeps signals strong

Durability and Materials

Rf connectors are made to last a long time. The materials used help them work well and keep signals strong. Most connectors use stainless steel, brass, or copper alloys. These metals are covered with gold, silver, or nickel. This makes them stronger and helps them conduct electricity better. The insulation, like PTFE, stops the signal from getting weak. It also lets the connector handle high heat. A connector can be used over 500 times. This means it keeps working well even in tough places.

Rf connectors keep signals strong by using good materials and smart designs. These features make them dependable for important connections in many industries.

RG316 Cable: Properties and Benefits

Physical and Electrical Characteristics

RG316 cable is small and works well. It has a stranded center conductor. This makes it bend easily. You can fit it in tight spaces. The cable’s thin size helps in small devices. RG316 keeps signals clear over many frequencies. This is good for high-frequency jobs.

The table below shows the main features of RG316 cable:

Attenuation gets higher as frequency goes up. The chart below shows how RG316 cable loses more signal at higher frequencies:

RG316 cable is a good pick for sending signals in wireless networks, test tools, and communication systems.

Environmental Resistance

RG316 cable can handle tough places. PTFE insulation and double shielding protect it from heat, water, and chemicals. The FEP jacket lets the cable work in very hot spots. RG316 is used in labs, outside, and factories.

Note: RG316 cable does not break down or get wet easily. It keeps working well even in rough places.

• PTFE insulation works in heat above 200°C

• Double shielding makes the cable strong

• Great at resisting chemicals and water

• Flexible design lets it bend and move a lot

RG316 cable’s strong protection helps it work well in hard jobs, like cars and outdoor gear.

Compatibility of RF Connectors with RG316 Cable

Performance Advantages

RF connectors and RG316 cable work well together. They give steady performance in hard places. This combo meets strict rules for signal strength and lasting power. RG316 cable uses PTFE insulation. This helps the cable handle heat and chemicals. The insulation keeps signals clear and stops loss, even at high frequencies. The cable bends easily, so it fits in small spaces. It can move a lot without breaking.

Technicians pick rf connectors with RG316 cable for jobs that need steady results. The connectors match the cable’s 50-ohm impedance. This is common in most RF systems. Matching stops signal bounce and keeps VSWR low. This protects equipment that is sensitive. The bayonet coupling on bnc rf connectors lets people connect and disconnect fast. This is good for setups that change a lot.

Note: RG316 cable keeps signals strong from -55°C to +200°C. This means it works outside, in labs, and in factories.

Key things to check when using rf connectors with RG316 cable are:

• Works up to 4 GHz for most jobs

• Matches impedance at 50 ohms to stop signal loss

• Fits the cable type for safe connections

Using rf connectors and RG316 cable stops signal leaks below 10 MHz. It also works well at medium frequencies. Many people use this combo in phones, medical tools, and test gear.

Comparison with Other Cable Types

RG316 cable is better than many other coaxial cables. It is strong and keeps signals steady. RG316 is tougher than RG174 and RG58. It does not get squished or stretched as easily. It bends a lot and does not break. This makes it good for test tools and RF extension cables.

RG316 cable keeps signals steady at high frequencies. This is because of its PTFE inside and strong shielding. At 2.4 GHz and 5.8 GHz, RG316 does not lose much signal. This means you can send signals farther. RG174 bends more but loses more signal and has less shielding. This can be a problem for high-frequency or outdoor jobs.

LMR-series cables, like LMR-200 and LMR-400, lose less signal over long distances. They are good for outdoor and long RF links. But RG316 is best for jobs where the cable moves a lot or bends often. Double-shielded RG316 is even better at blocking EMI and works in more temperatures.

• RG316 cable is small and very strong.

• RG316 is great for jobs with lots of movement.

• RG316 keeps signals steady at high frequencies and is better than RG174 in many cases.

RF connectors with RG316 cable are used in many industries. They are picked for being reliable, flexible, and steady. This combo works in labs, factories, and many other places.

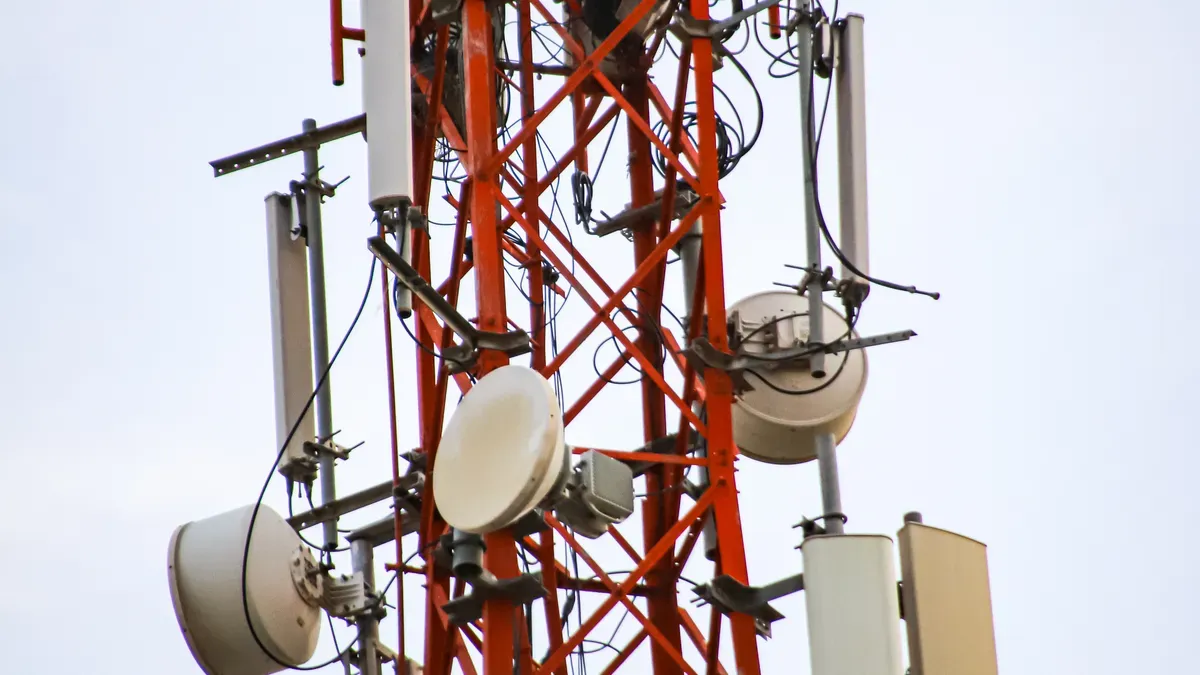

Industry Applications of BNC RF Connectors

Telecommunications

Telecommunications networks need rf connectors to keep signals steady. Bnc rf connectors with RG316 cable help send data fast. These connectors keep signals strong in 5g base stations and switching centers. Many engineers pick this setup because the bayonet system is quick. The connectors make it easy to install and fix things. They also give good connections for wireless systems. This is why they are used in both city and country networks.

Note: Bnc rf connectors help stop signal loss. This is very important for 5g and broadband jobs.

Broadcasting and Media

People who work in TV and radio use rf connectors a lot. Bnc connectors send clear sound and video signals. The connectors work well for live shows and studio work. RG316 cable bends easily behind racks and equipment. The bayonet system keeps the connectors from coming loose during live shows. This is important so the media keeps playing without stopping.

• Used in cameras, editing rooms, and sending equipment

• Works with both old and new signal types

Medical Equipment

Makers of medical tools use rf connectors for important machines. These connectors give steady links in MRI, ultrasound, and patient monitors. RG316 cable does not get hurt by chemicals or heat in hospitals. The connectors have low resistance, so data moves right. Medical workers can connect and disconnect devices fast for cleaning or fixing.

Tip: Good rf connectors help keep patients safe and data correct in medical jobs.

Test and Measurement

Labs that test things use rf connectors for checking signals. Engineers use them in oscilloscopes, analyzers, and signal generators. The connectors work well up to 4 GHz for testing. RG316 cable bends easily, so it fits on busy test tables. The connectors last through many uses, so they are good for lots of tests.

Aerospace and Defense

Aerospace and defense need strong rf connectors for important jobs. These connectors are used in radar, avionics, and satellites. The materials in bnc rf connectors do not break from shaking or hot and cold. RG316 cable works well in planes and trucks because it resists tough weather. Military jobs need connectors that last and work well.

• Used in navigation, talking, and watching systems

• Needed for military and aerospace work

Alert: Rf connectors are very important in the military. They keep connections safe and steady in hard places.

Industrial Automation

Factories use rf connectors for machine control and checking systems. The connectors send data well in production lines. RG316 cable bends to fit in small spaces in machines. The quick-connect feature helps fix machines fast. These connectors also resist chemicals and heat in factories.

• Used in robots, sensors, and control panels

• Helps machines keep working in busy factories

Real-World Use Cases

Telecommunication Networks

BNC RF connectors with RG316 cable are important in telecom networks. Engineers use them to connect base stations and routers. They also connect signal repeaters. The bayonet coupling lets people make changes fast. RG316 cable fits in small spaces inside cabinets. This setup keeps data moving quickly. It helps stop downtime. Both city and country networks use these connectors for steady links. The materials can handle heat and shaking. This helps in busy network centers.

Note: Good connections are needed for telecom jobs. BNC connectors and RG316 cable help keep calls and data going without stopping.

Medical Imaging Devices

Medical imaging machines need clear signals for good results. BNC RF connectors with RG316 cable connect sensors and monitors. They also connect MRI and ultrasound machines. The connectors have low resistance. This helps send clean signals. RG316 cable does not get hurt by chemicals or heat in hospitals. Medical workers can disconnect and reconnect devices fast. This helps with cleaning and fixing. The setup helps keep patients safe. It also makes sure equipment works well.

• Used in MRI, ultrasound, and patient monitors

• Easy to clean and fix

• Keeps data right for doctors and nurses

Laboratory Test Equipment

Labs need tools that measure things exactly. BNC RF connectors with RG316 cable link oscilloscopes and signal generators. They also link analyzers. The connectors can be used many times and still work well. RG316 cable bends easily. This helps on crowded test tables. The bayonet system lets people set up and take down fast. This combo gives accurate readings. It also helps get the same results again and again.

Tip: Using BNC connectors with RG316 cable helps labs get the right results every time.

BNC RF connectors with RG316 cable work well in lots of jobs. They help send signals clearly, even in tough places. The bayonet design lets you connect things fast and easily. These connectors last a long time and meet safety rules.

• Sends signals without problems in hard places

• Bayonet design makes connecting simple

• Very strong and safe to use

Think about using BNC RF connectors with RG316 cable for your next job. This setup is trusted and lasts a long time for important connections.

FAQ

What is the main advantage of using BNC RF connectors with RG316 cable?

BNC RF connectors with RG316 cable make fast, safe connections. The bayonet system lets you set up quickly. RG316 cable does not get damaged by heat or chemicals. This combo keeps signals working well in tough places.

Can BNC RF connectors handle high-frequency signals?

Yes. BNC RF connectors for RG316 cable work up to 4 GHz. This means they are good for phones, TV, and test tools. They help keep signals steady at high speeds.

Are BNC RF connectors with RG316 cable suitable for outdoor use?

Yes. RG316 cable has PTFE insulation and strong shielding. These parts keep out water, chemicals, and big temperature changes. This makes them great for outside and factory jobs.

How many times can I connect and disconnect a BNC RF connector?

BNC RF connectors are made to last a long time. You can connect and disconnect them over 500 times. They still work well after many uses. This makes them a good pick for gear that needs lots of changes.
