You will see big differences between SMA RF Connectors and the 2.92 mm RF connector when you look at their frequency ranges and what they are used for. The 2.92mm RF Coaxial Connectors can work with signals up to 46GHz. SMA RF Connectors can only work up to 18GHz. Look at the table below for a fast comparison:

Picking the right connector is very important for high-frequency jobs. You keep your signal strong and lose less signal, especially in tough areas like 5G and satellite communications. Danyang Teruilai Electronics Co.,Ltd sells both types of connectors, so you can get good, high-quality parts for your next project.

• You want high-frequency jobs to work well.

• You need new connector designs for small, strong systems.

• You get help from smart engineering and good quality checks.

Key Takeaways

• Pick the 2.92 mm RF connector for high-frequency jobs up to 40 GHz, like in 5G and microwave systems.

• Use SMA connectors for regular RF work up to 18 GHz because they are cheaper and work well for most uses.

• Know that connector accuracy matters; the 2.92 mm connector has less signal loss and keeps signals strong at high frequencies.

• Be careful when connecting SMA and 2.92 mm connectors; line them up right so you do not break them or lose signal quality.

• Think about what your project needs, like how much frequency and strength you need, to pick the best connector for good results.

SMA vs. 2.92mm RF Connector: Key Differences

Overview Table

You can quickly see how sma and 2.92 mm rf connector types are different. The table below shows their main technical features and how they work.

Tip: If you need to use signals higher than 18 GHz, pick the 2.92 mm rf connector. For most regular RF jobs, sma connectors are good and save money.

Main Distinctions

You can tell sma and 2.92 mm rf connector types apart by looking at how they are made, how they work, and what they are used for.

• Frequency Range
  The 2.92 mm rf connector works with a much bigger frequency range. It goes up to 40 GHz. Sma connectors only go up to 18 GHz. This lets you use the 2.92mm for things like 5G and advanced microwave systems. Sma connectors are better for telecom, navigation, and normal RF jobs.

• Mechanical Design
  The 2.92 mm rf connector is built with very tight measurements and uses air dielectric. This helps keep insertion loss low and signal quality high at fast speeds. Sma connectors use PTFE dielectric and have normal measurements. They work well for most RF needs, but are not as exact as the 2.92mm.

• Insertion Loss and VSWR
  Sma connectors lose more signal, especially when the frequency gets higher. The 2.92 mm rf connector keeps signal loss low, so your signal stays strong. Both connectors have good VSWR, but the 2.92mm keeps it at higher frequencies.

• Material and Construction
  The 2.92 mm rf connector is made from passivated stainless steel or brass. Sma connectors use copper, usually with nickel or gold on top. The 2.92mm uses beryllium copper for the contact, which makes it strong and work well. Sma connectors use phosphor bronze, which is also good.

• Cost and Application
  The 2.92 mm rf connector costs more because it is made with more care. Sma connectors cost less and are used in many products. If you need a connector for high-frequency and high-performance, choose the 2.92mm. For most RF and microwave jobs, sma connectors are a smart choice.

• Compatibility
  You can connect sma and 2.92 mm rf connector types together, but you need to be careful. The 2.92mm can fit with sma, but because it is made so exactly, you should not connect and disconnect them too much or they might get damaged.

Note: Always check what your system needs before picking a connector. If you want to build a test setup for high frequencies or a 5G network, the 2.92 mm rf connector is best. For most RF projects, sma connectors give you a good mix of price and reliability.

Now you know how sma and 2.92 mm rf connector types are different in how they are made, how they work, and what they are used for. This helps you choose the right connector for your project.

2.92mm Connector: Frequency and Performance

Frequency Range up to 40GHz

You want your RF system to work at very high frequencies. The 2.92mm connector helps you reach up to 40GHz. This makes it a top choice for advanced microwave and 5G applications. You can see how the 2.92mm connector compares to other precision connectors in the table below:

You see that the 2.92mm connector stands out for high-frequency jobs. It works better than SMA and 3.5 mm connectors when you need to handle signals above 18GHz. You get strong signal transmission and low loss, which is important for test equipment and communication systems.

Precision and Tolerances

You need precision in your RF connections. The 2.92mm connector gives you tight tolerances and reliable performance. Engineers design the 2.92mm connector with exact measurements. This keeps the signal clean and reduces errors. You get a maximum insertion loss of 1.6 dB when you use the 2.92mm connector at frequencies above 18GHz. This low loss means your signal stays strong even at high speeds.

You also benefit from the air dielectric design inside the 2.92mm connector. This design helps keep the signal stable and reduces unwanted noise. You can trust the 2.92mm connector for critical jobs in labs, 5G networks, and microwave systems. You get consistent results every time you use it.

Tip: If you need high accuracy and low signal loss, choose the 2.92 mm connector for your next project.

SMA Connector: Specs and Use

Frequency Range up to 18GHz

You will find the sma connector in many RF systems. It can work with signals from DC up to 18GHz. This means you can use it for lots of different jobs. It is good for wireless communication, navigation, and testing. The sma connector gives a steady signal for most RF uses. If your project needs to go above 18GHz, you should pick another connector like 2.92mm.

• The sma connector works from DC to 18GHz.

• This makes it a top pick for many RF systems.

• You can use sma for telecom, navigation, and microwave jobs.

• For higher frequencies, try connectors like SSMA or 2.92mm.

Tip: Always check what frequency your system needs before you choose a connector. The sma connector is a good mix of price and how well it works for most jobs.

Mechanical Strength

You want your connectors to last a long time. The sma connector is strong enough for daily use. It is good for cable assemblies and devices you connect often. The sma connector has a thinner outer conductor than the 2.92mm connector. This means it is not as strong as the 2.92mm. But it still lasts a long time if you are careful.

Here is a quick comparison:

• sma connectors are not as strong as 2.92mm connectors.

• You can use sma many times if you do not handle it roughly.

• 2.92mm connectors are better for hard jobs and lots of testing.

You see sma connectors in telecom, navigation, and lab tools. They give a steady connection for most RF needs. If you need more strength and exactness, you should use 2.92mm connectors for your project.

Mechanical Durability and Design

Construction Materials

It is important to know what makes a connector strong. The metals in sma and 2.92mm connectors help them last longer. Most sma connectors use aluminum or stainless steel. Aluminum is light, so it is good for things like airplanes or satellites. Stainless steel is heavier, but it is stronger. This means it can handle harder jobs.

The 2.92mm connector uses these metals too. Aluminum is used in high-performance designs. Stainless steel makes the connector even tougher. Both sma and 2.92mm connectors often have gold on the contacts. Gold helps stop rust and keeps signals clear.

Here is a table that shows how these metals help connectors last:

You can use sma connectors for most daily jobs. If you need something stronger, pick 2.92mm connectors.

Mating Cycles

You want your connectors to work after many uses. Mating cycles tell you how many times you can connect and disconnect before it wears out. Most sma connectors last about 500 mating cycles. This means you can use them many times in test setups or cable assemblies. They give you a good mix of strength and price.

The 2.92mm connector is made for even harder jobs. You can use it where you need to connect and disconnect a lot, like in labs or test equipment. It stays reliable even after many uses.

Tip: Always be gentle with sma and 2.92mm connectors. Clean the contacts and do not use too much force. This helps your connectors last longer.

You see sma connectors in telecom, navigation, and many RF systems. You find 2.92mm connectors where you need more strength and accuracy. Both types work well if you pick the right metal and use them the right way.

Compatibility and Interchangeability

Threaded Design

You see that both sma and 2.92mm connectors use a threaded design. This design helps you make a secure connection. You twist the connector to lock it in place. The threads keep the connector from coming loose during use. You find this design in many RF systems because it works well for repeated connections.

The sma connector uses a 1/4-inch threaded coupling. You can connect it easily by hand. The 2.92mm connector also uses threads, but the design is more precise. You need to align the connectors carefully before you twist them together. This helps you avoid damage and keeps the signal strong.

Here is a quick table to show you the differences:

Tip: Always check the threads for dirt or damage before you connect sma or 2.92mm connectors. Clean threads help you get a better connection.

Mating Risks

You need to know about mating risks when you use sma and 2.92mm connectors. If you connect different types without care, you can damage the connector or lose signal quality. The sma connector fits with many other RF connectors. You can use it in lots of systems. The 2.92mm connector can mate with sma connectors, but you must be careful.

If you force the connection or twist too hard, you might bend the center pin. This can break the connector. You should always align the connectors before you mate them. You should not use too much force. You should avoid mixing old and new connectors because wear can cause problems.

Here are some simple steps to reduce risks:

• Align the connectors before mating.

• Twist gently and do not use tools.

• Inspect the center pin for bends.

• Clean the threads before each use.

Note: You keep your RF system working well when you follow these steps. You protect both sma and 2.92mm connectors from damage.

You see that sma connectors are more forgiving in daily use. The 2.92mm connector needs more care because of its precision. You get better results when you handle both types with respect.

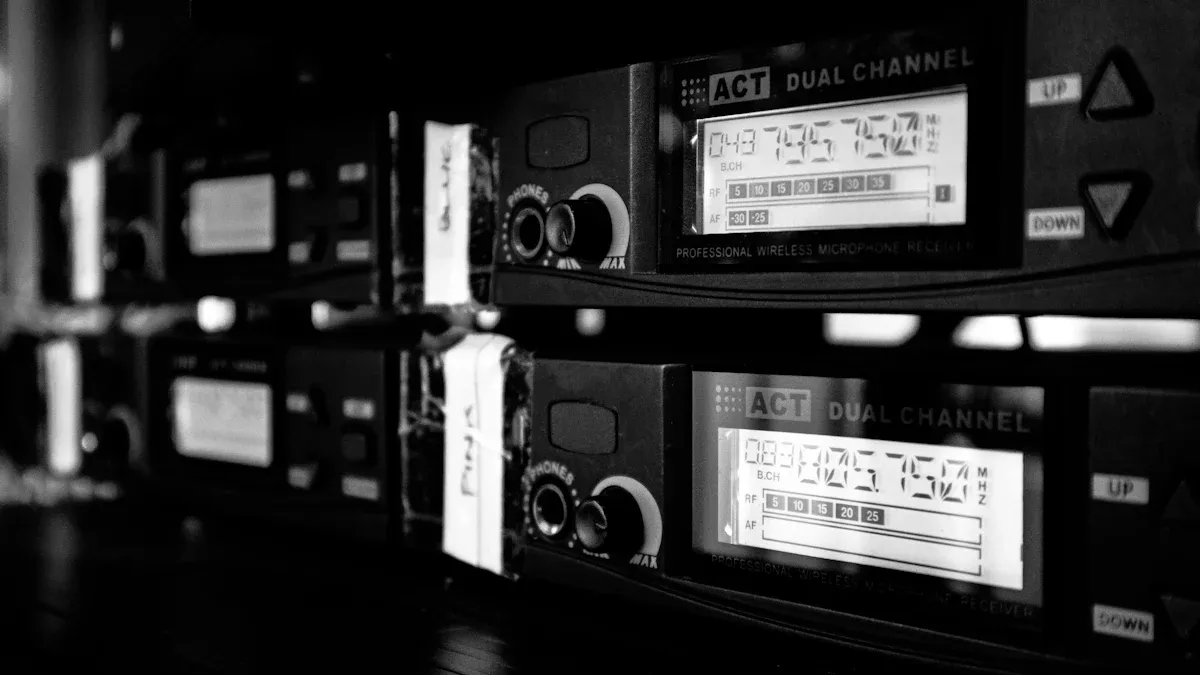

Applications of SMA and 2.92mm Connectors

SMA in Telecom and Navigation

Sma connectors are used in many telecom and navigation systems. They help keep signals strong and steady. Sma connectors are small and fit well in tight spaces. You see them in wireless routers, GPS units, and car tracking devices. Here are some ways sma connectors are used:

• GNSS receivers use sma to get timing and location data.

• Handheld GPS devices use sma for good connections.

• Car tracking systems use sma for real-time updates.

• Routers and modems use sma for steady data signals.

Sma connectors are popular because they work well and do not cost too much. Danyang Teruilai Electronics Co.,Ltd sells sma connectors for telecom, navigation, and other RF uses. Their products are made to last and work well.

2.92mm in Microwave and 5G

You need special connectors for microwave and 5G systems. The 2.92mm connector gives you strong signals with little loss. You use 2.92mm in test tools, radar, and telecom jobs. Its design keeps the inside parts lined up, so signals stay clear at high speeds.

• 2.92mm works from DC up to 40GHz for high-frequency jobs.

• The 2.92mm connector is made for exact work in RF and microwave systems.

• You find 2.92mm in radar, test tools, and 5G networks.

Danyang Teruilai Electronics Co.,Ltd makes 2.92mm connectors for microwave and 5G uses. Their products meet high standards for quality and performance.

Pick the right connector for your job. Sma is good for telecom and navigation. 2.92mm is best for microwave, 5G, and test systems.

You see sma and 2.92mm connectors in planes, defense, smart cities, and more. Danyang Teruilai Electronics Co.,Ltd helps these fields with expert designs and many connector choices.

Cost and Value Considerations

Price Comparison

You want to know how much you will spend on connectors for your RF project. The price for sma connectors and 2.92mm connectors is often similar in the global market. You can see the typical price range in the table below:

You can buy sma connectors for a low price. Many companies use sma connectors because they are affordable and easy to find. You also see that 2.92mm connectors cost about the same as sma connectors. You get good value for both types, so you can choose the connector that fits your technical needs without worrying about high costs.

Tip: You can save money by buying sma connectors in bulk for large projects. You can also choose 2.92mm connectors for high-frequency jobs without spending much more.

Long-Term Reliability

You want your RF system to last a long time. You need to pick connectors that work well in tough environments. Sma connectors give you semi-precision and work up to 18 GHz. You see sma connectors in many RF applications, like wireless networks and navigation systems. You can trust sma connectors for daily use because they are strong and reliable.

2.92mm connectors give you higher precision and work up to 40 GHz. You use 2.92mm connectors for demanding jobs, like microwave testing and 5G networks. You get stable signals and low loss with 2.92mm connectors, even when you use them in harsh conditions.

Here is a table that shows how sma and 2.92mm connectors compare in reliability:

You can use sma connectors for most projects and get good results. You should use 2.92mm connectors when you need extra accuracy and long-term stability. You get peace of mind knowing your system will keep working year after year.

Note: You should always check your project’s needs before choosing sma or 2.92mm connectors. You get strong performance and good value with both types.

Performance and Reliability Trends

Signal Integrity

You want your RF system to send signals clearly. Signal integrity means your signal stays strong all the way. Both sma and 2.92mm connectors help keep signals clean. They work best at different frequencies.

Here is a table that shows how each connector works:

You use sma connectors for most wireless and navigation systems. They give good signal quality up to 18 GHz. If you need higher frequencies, use 2.92mm connectors. These keep your signal strong up to 40 GHz. You get less signal loss and better results in labs, 5G, and radar.

You want to avoid problems like signal reflection or loss. The 2.92mm connector has a special design for low VSWR and low insertion loss. This means your signal travels with less trouble. Sma connectors are good for daily jobs, but you may see more loss at higher frequencies.

Tip: Always pick a connector that matches your system’s frequency. This helps you get the best signal integrity.

Future Advancements

You will see new changes in RF connector technology. These changes help you get better performance and reliability from sma and 2.92mm connectors.

• Engineers design 2.92mm connectors for low VSWR and great return loss. You get high power handling and easy use with sma and other connectors.

• New PCB connectors use a 30° angled body. This design gives better electrical performance, almost like edge launch connectors.

• There is a push to make things smaller. Tiny sma connectors fit into small devices like wearables and IoT gadgets.

• More devices need to work at higher frequencies. You will need connectors that go past 18 GHz, especially for 5G and satellites.

• Aerospace and defense want tough sma connectors. These last longer in hard places.

• Companies now make custom connectors that work with other RF parts. This helps you build systems that are easier and work better.

You can expect sma and 2.92mm connectors to keep getting better. You will find them in more places as technology grows. You get better signal quality, more reliability, and new features for your future projects.

You can easily tell SMA and 2.92mm connectors apart. SMA connectors work up to 26.5 GHz. They are used in things like planes and radar. 2.92mm connectors go up to 40 GHz. They are good for jobs that need high frequencies. You should think about what your project needs. Check the frequency, how tough the connector is, and where you will use it. Do not use the wrong connector or forget about the frequency limit. If you work with Danyang Teruilai Electronics Co.,Ltd, you get special solutions. They check quality carefully and deliver quickly. You get connectors you can trust for any job.

Tip: Pick the connector that fits your system’s frequency and where you use it. This helps you get the best results.

FAQ

What is the main difference between SMA and 2.92mm connectors?

You see the biggest difference in frequency range. SMA connectors work up to 18 GHz. 2.92mm connectors reach up to 40 GHz.

Can I connect SMA and 2.92mm connectors together?

You can mate SMA and 2.92mm connectors, but you must align them carefully.

Tip: Always check for damage before connecting. This helps you avoid signal loss.

Where do you use SMA connectors most often?

You find SMA connectors in wireless routers, GPS devices, and telecom equipment.

• Wireless networks

• Navigation systems

• RF testing tools

Why should you choose 2.92mm connectors for high-frequency jobs?

You get better signal quality and lower loss at high frequencies. 2.92mm connectors work well in microwave, radar, and 5G systems.

Note: Pick 2.92mm connectors for jobs above 18 GHz.
