What Are the Key Applications of N Type RF Connectors in 2026

2026-04-21

What Are the Key Applications of N Type RF Connectors in 2026 — Image Source: pexels

You will see n type rf connectors used in important places in 2026. They are found in 5G smart city networks, antennas, radar, satellite systems, and surge protection. These connectors are known for being very reliable. They can handle strong shaking and work with frequencies up to 18GHz. The table below explains why people pick them more than other connectors:

Characteristic	Description
Connection Structure	Threaded, secure, and easy to lock
Frequency Range	0 to 11GHz standard, up to 18GHz for advanced versions
Reliability	High, with strong mechanical performance

Top companies keep making new changes. This makes these connectors even more trustworthy and useful for many jobs.

Key Takeaways

N Type RF connectors are important for 5G networks, antennas, and military uses because they work well and are reliable.
These connectors have threads that help them stay tight, so they are good for outside use in tough weather.
N Type connectors can work with frequencies up to 18 GHz and power up to 300W, so they are good for jobs that need a lot of power.
Using N Type connectors helps stop signal loss and makes things work better, especially in phones and test tools.
Picking N Type connectors means you get strong and long-lasting parts, so you do not need to fix them as much.

N Type RF Connectors Overview

N-Type Connector Structure

N-type connectors are made to be strong and last a long time. They have a threaded coupling, so you twist them to lock them in place. This keeps them from coming loose, even if things shake or move. The center pin and the outside shell help keep signals clear and strong. You can use n-type connectors in many places because they fit with most coaxial systems. The usual impedance is 50 ohms, which matches lots of devices in radio, telecom, and test equipment.

Here is a table that shows the main parts of n-type connectors and how each part helps you:

Component	Contribution to Performance
Threaded coupling	Gives high reliability and resists vibration, so your connection stays stable.
Impedance (50 Ω)	Works with many coaxial systems, so you get easy integration.
Frequency range	Handles DC to 11 GHz (up to 18 GHz for advanced types), so you can use it in many applications.
Power handling	Manages up to 300 W at 10 GHz, so you can use it for high-power jobs.
Temperature range	Works from -65°C to +165°C, so you can trust it in hot or cold places.
Mating cycles	Lasts for at least 500 connections, so you get long life and less maintenance.

Key Features and Performance

N-type connectors are special because they have strong features. They can handle high frequencies, so they are great for new wireless networks and 5G smart city projects. You can use them outside because they have an IP65 rating. This means dust and water will not stop them from working. The threaded design gives a tight fit, which is better than bayonet types like BNC connectors.

Let’s compare n-type connectors to BNC connectors:

Feature	N-type Connector	BNC Connector
Impedance	50 Ohm	50 Ohm or 75 Ohm
Frequency Range	DC to 11 GHz	DC to 4 GHz
Mechanical Coupling	Threaded	Bayonet
Durability	≥ 500 Cycles	N/A
IP Rating	IP65	N/A
Application	Telecom, test, broadcasting	N/A

You can count on n-type connectors for high-power and high-frequency jobs. They last a long time and work well in hard places. You will see them in antennas, base stations, and test equipment. When you pick n-type connectors, you get a product that works for today’s advanced technology.

Applications of N Type Connector in 2026

Telecommunications and Wireless Networks

By 2026, n-type connectors will be everywhere in telecommunications. These connectors help make wireless networks strong. You can use them in microwave systems and spectrum analyzers. They connect antennas that work from 0 to 11GHz. You will see them in land mobile radios and wireless data links. They are also used in paging and cellular systems. Many engineers pick n-type rf connectors for microwave jobs and testing tools. You can use them in amateur radio devices in UHF bands.

N type rf connectors are important for wireless base stations and outdoor gear. They help RF transmission systems work well. You can trust them for steady connections outside. These connectors support high-frequency signals. This is needed for 5G smart city projects. They keep your signal clear and strong, even when the weather changes.

Tip: If you use n-type connectors, you get low Passive Intermodulation (PIM). This helps your 5G networks stay fast and reliable.

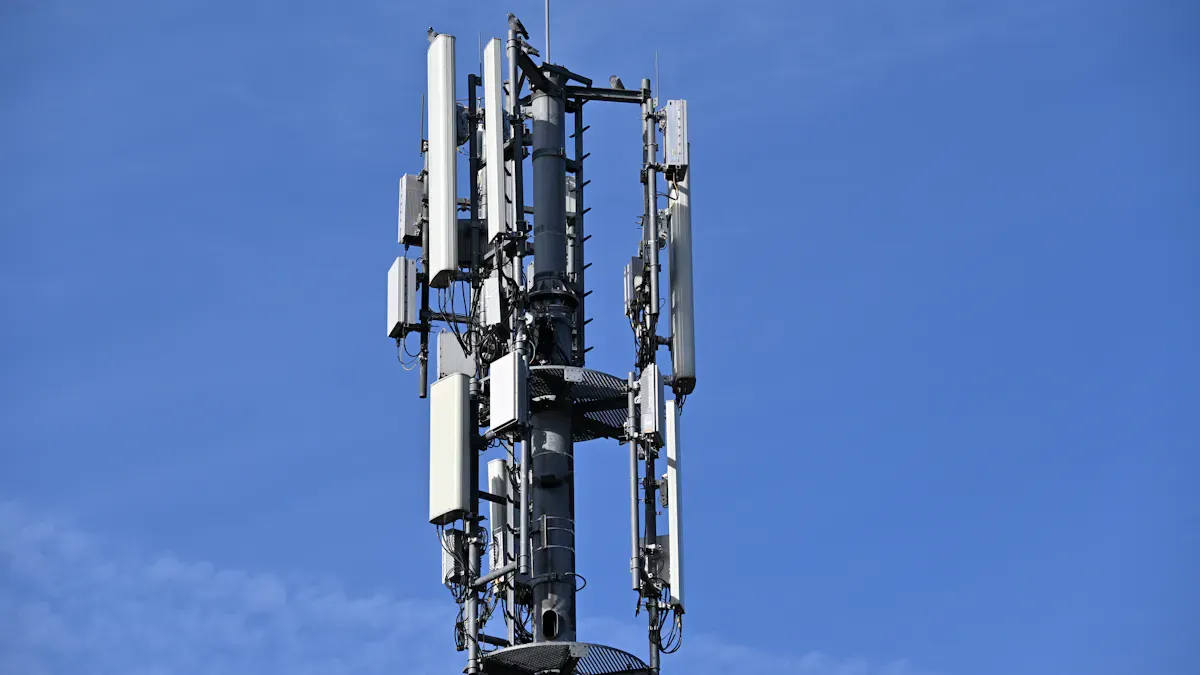

Antennas and Base Stations

You need n-type connectors for antennas and base stations. These connectors help antennas and base stations work better. They improve spectral efficiency, which is important for 5G and 6G networks. They boost the Signal-to-Noise Ratio (SNR). N type rf connectors resist Passive Intermodulation (PIM). PIM can hurt how well your network works.

You will see n-type connectors in base stations and antenna systems. They are also in microwave communication equipment. They connect antennas to transceivers and keep signals strong. The threaded coupling gives a tight fit, even outside. You can use them in outdoor gear because they handle bad weather and rough use.

N-type connector specifications include:
- Frequency range up to 11 GHz (some advanced types up to 18 GHz)
- Power handling up to 300 W at 10 GHz
- IP67 waterproof rating for outdoor use

Danyang Teruilai Electronics Co.,Ltd makes high-quality n type rf connectors for these uses. Their products help you build strong networks for smart cities and new communications.

Military, Aerospace, and Defense

You will see n-type connectors in military, aerospace, and defense systems. These connectors work in radar and satellite links. They support secure communication lines and meet tough military rules. N type rf connectors work in hard places, like extreme heat or cold and shaking.

You can use them in military radar because they handle high power and do not rust. N-type connectors keep your signal safe and clear, even in tough places. They have an IP67 waterproof rating, so they work in rain, dust, or snow. UV-resistant silicone rubber helps them last longer in sunlight and heat.

Main applications of n-type connector in this field:
- Radar systems
- Satellite communication systems
- Secure military communication lines

You can trust n-type rf connectors to keep your communications safe and steady anywhere.

Test and Measurement Equipment

You need n-type connectors for test and measurement equipment. These connectors are made for high-performance jobs. The threaded coupling and inside gasket lower signal loss. This helps you get good measurements in the lab.

Here is a table that shows how n-type connector specifications compare:

Connector Type	Frequency Range	Power Handling
N Connector	Up to 11 GHz	Around 150 W
Precision N	Up to 18 GHz	Up to 250 W

N type rf connectors give you steady, low-loss connections. This is important for keeping your signal strong during tests. The strong design and tight fit protect your equipment from shaking and weather. You can use them with low-loss coaxial cables to lower signal loss in high-power jobs.

You will also see n-type connectors in surge protection devices. These connectors help protect your test and measurement systems from voltage spikes. They keep your signal safe and your equipment working well.

Note: Danyang Teruilai Electronics Co.,Ltd has many n-type rf connectors and surge arrestors for test and measurement jobs. Their products help you get good results and protect your important equipment.

Why Choose N Type RF Connector

Advantages Over Other RF Connectors

You want a connector that gives a strong connection. The n-type connector is better than SMA and BNC connectors. Engineers use n-type connectors for tough and high-power jobs. It is more durable and has a strong design. This makes n-type connectors great for telecom and broadcasting.

Here are some reasons to pick n-type connectors:

You need a connector that works in rough places.
You want a connector that does not let in water or break in heat or cold.
You need a connector that can handle lots of power.

Let’s check the highest frequency each connector can handle:

Connector Type	Maximum Frequency Rating
N-Type	Up to 18 GHz (precision variants)
SMA	Up to 26.5 GHz (precision types)
BNC	Up to 4 GHz

You can see n-type connectors work with many frequencies. They are good for systems that need high power and steady performance.

Reliability and High-Frequency Performance

You can count on n-type connectors to work well. They are made for outdoor use and tough weather. These connectors do not let in water or break in hot or cold places. This makes n-type connectors perfect for military and factory systems.

When you use n-type connectors, you get low signal loss. SMA connectors also work with high frequencies and have low loss. BNC connectors work up to 4 GHz but lose a little more signal. Both SMA and BNC connectors lose between 0.1 and 0.3 dB per connection. The n-type connector keeps your signal strong, even in hard places.

Tip: Pick n-type connectors when you need something tough for important systems. They last a long time and keep your signal clear.

You will find n-type connectors in many systems that need to work all the time. They give a strong connection for antennas, base stations, and test tools. You can trust n-type connectors to work where other connectors might not.

You can find N type RF connectors in many places. They are used in telecom, antennas, military, and test equipment. These connectors are special because they last a long time. They also work with high power. Companies keep making them better every year. This means you get stronger signals and less signal loss. New materials and smart designs help your systems work well. Your equipment stays reliable because of these changes.

Feature	Benefit
Durability	Needs fewer fixes, lasts longer
Performance	Gives strong signal, low loss
Suitability	Works well in hard places

When you know about these new changes, you can pick the best connectors for your projects.

FAQ

What makes N type RF connectors different from other connectors?

You get a threaded design with N type connectors. This gives you a strong and stable connection. You can use them for high-frequency signals and outdoor jobs.
